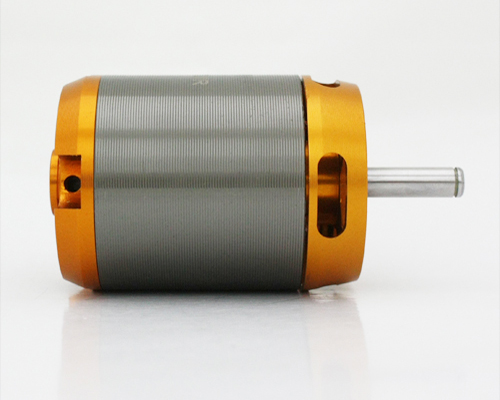

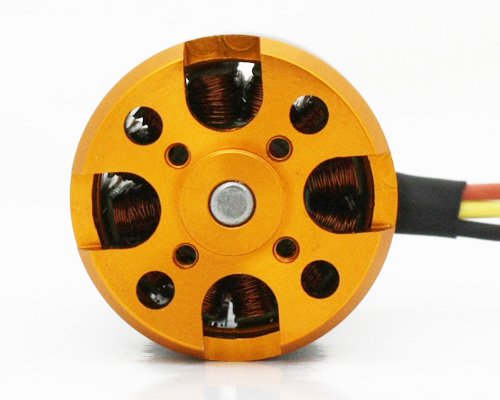

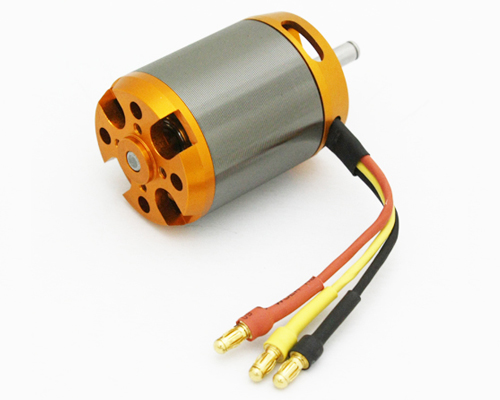

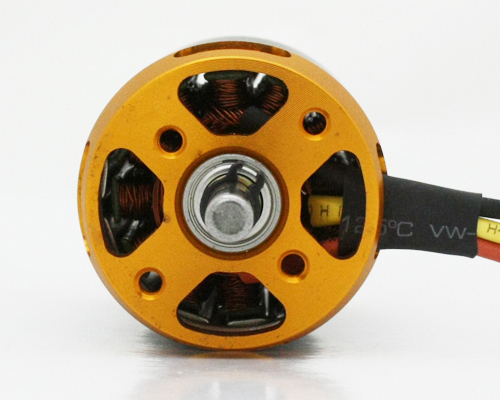

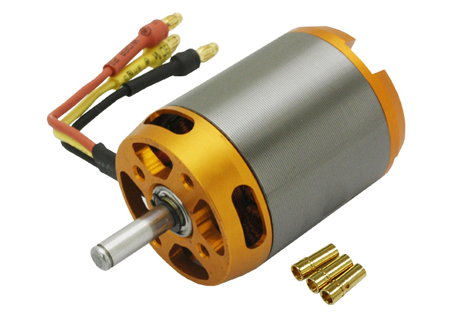

TOPEDGE 3548 Outrunner Brushless Motor-KV420
|
|
|
| Item No: |
OB3548-10 |
| Packing Size: |
144*53*53mm |
| Gross Weight: |
195g |
| Brand: |
TOPEDGE |
|
|
|
|
|
| Description |
|
Specifications:
KV: 420rpm/v
Non-load Current: 0.6A
Working Current: ¡Ü23A
Shaft Diameter: 5mm
N.W.: 162g
G.W.: 195g
Parameters:
| KV |
Non-load
Current |
Max
Working Current |
Loaded
Propeller |
Input
Voltage |
Working
Current |
Pull |
Output Power |
Rated Current |
Weight |
Shaft
(mm) |
Internal
Resistance |
| 420 |
0.6A |
23A |
1560 |
14.8V |
12.5A |
1550g |
185w |
20A |
162g |
5 |
0.1255¦¸ |
| 16.8V |
15.5A |
1800g |
260.4w |
| 18.5V |
17A |
2200g |
314.5w |
| 21V |
21A |
2600g |
441w |
| 22.2V |
23A |
2800g |
510.6w |
| 25.2V |
26A |
3500g |
655.2w |
| 1680 |
14.8V |
17A |
1900g |
251.6w |
| 16.8V |
20A |
2200g |
336w |
| 18.5V |
23A |
2600g |
425.5w |

Size Reference:
Unit: mm
|
|
