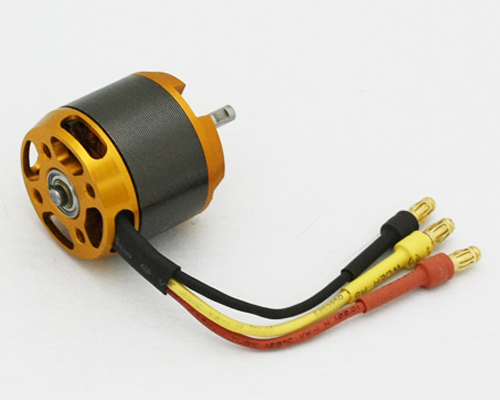

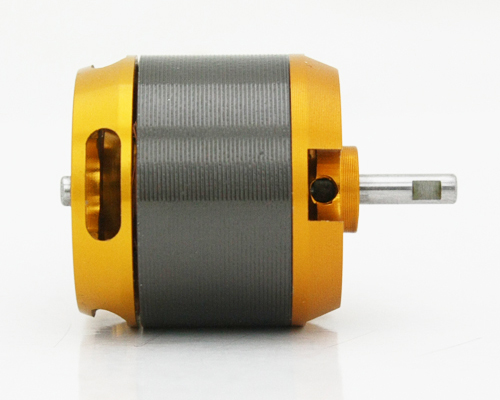

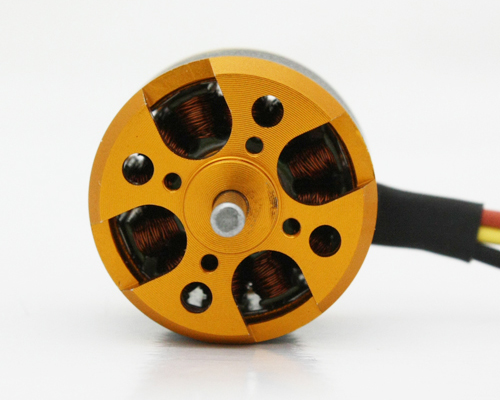

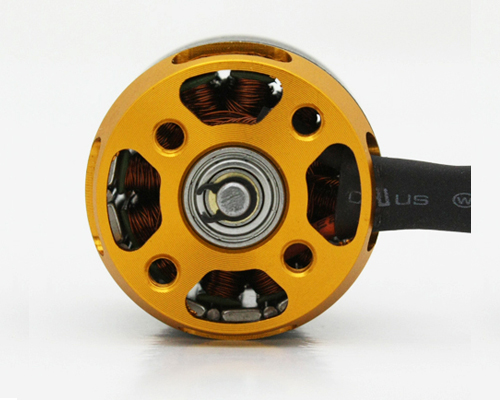

TOPEDGE 2830 Outrunner Brushless Motor-KV830
|
|
|
| Item No: |
OB2830-14 |
| Packing Size: |
134*46*46mm |
| Gross Weight: |
81g |
| Brand: |
TOPEDGE |
|
|
|
|
|
| Description |
|
Specifications:
KV: 830
Resistance: 0.177¦¸
Non-load Current: 0.4A
Working Current: ¡Ü13A
Shaft Diameter: 4mm
N.W.: 56g
G.W.: 81g
Parameters:
| KV |
Non-load
Current |
Max
Working Current |
Loaded
Propeller |
Input
Voltage |
Working
Current |
Pull |
Output Power |
Rated Current |
Weight |
Shaft
(mm) |
Internal
Resistance |
| 830 |
0.4A |
13A |
0947 |
7.4V |
4A |
312g |
29.6w |
11.5A |
56g |
3.175 |
0.177¦¸ |
| 8.4V |
4.5A |
384g |
37.8w |
| 11.1V |
7A |
610g |
77.7w |
| 12.6V |
8A |
720g |
100.8w |
| 14V |
9.2A |
850g |
128.8w |
| 16V |
11A |
1020g |
176w |
| 1047 |
7.4V |
4.5A |
379g |
33.3w |
| 8.4V |
5.5A |
458g |
46.2w |
| 11.1V |
8.1A |
722g |
89.9w |
| 12.6V |
10A |
899g |
126w |
| 14V |
11.5A |
1000g |
161w |
| 16V |
13A |
1160g |
208w |
| 1147 |
11.1V |
12A |
870g |
133.2w |
| 12V |
13A |
1000g |
156w |
| 14V |
16A |
1150g |
210w |
| 1380 |
8.4V |
11A |
650g |
92.4w |
| 11.1V |
15A |
1000g |
166.5w |
Size Reference:
Unit: mm
|
|
