Accessories > Motors > Outrunner Brushless Motor
|
|
|

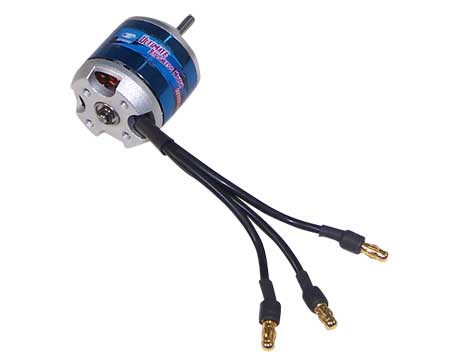

TOPEDGE 2215 Outrunner Brushless Motor-KV950
|
|
|
| Item No: |
OB2215-25 |
| Gross Weight: |
59g |
| Brand: |
TOPEDGE |
|
|
|
|
|
| Description |
|
Parameters:
KV: 950
No. of cells: 2-3s Li-Poly
Stator dimensions: 22*15mm
Shaft diameter: 3mm
Weight: 59g (2.08oz)
Recommended model weight: 300-900g
Recommended prop w/o gearbox: APC 9*4.7 / APC 10*4.7 / APC 10*5(thin)
OB2215 series:
|
Item |
Cell Count |
RPM/V |
Prop (APC) |
RPM |
Max Current
(<60S) |
Thrust |
|
OB2215-25 |
3S |
950 |
10×4.7 |
7250 |
16.5A |
950g (2.10 lb) |
|
10×5 |
8180 |
14A |
850g (1.87 lb) |
|
OB2215-20 |
3S |
1200 |
10×4.7
(slow) |
7400 |
20.2A |
1125g (2.48 lb) |
|
10×5 |
9350 |
24.5A |
1200g (2.61 lb) |
|
|
