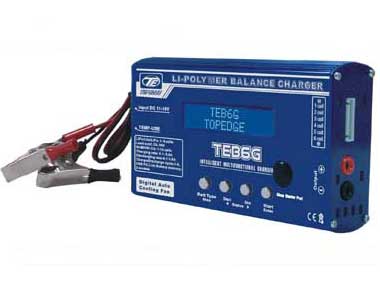

Blue Li-Polymer Balance Charger
Item No: TEB6GB
Dimensions: 142*90*35mm
Gross Weight: 497g
40% Off

  • For chargine Li-Po,Li-IO,Li-Fe,Ni-CdNi-MH,Pb batteries and glow starter
  • Material: aluminum alloy
  • Color: blue
  • Size: 1429035mm
  • Quantity: 1pcs
  • N.W.: 380g
  • G.W.: 497g
Related parameters:
  • Operating voltage range: DC 10.0-18.0V
  • Circuit power:
    • Max for charging: 50W
    • Max for discharging: 5W
  • Charge current range: 0.1-5.0A
  • Discharge current range: 0.1-1.0A
  • Current drain for Li-po balancing: 300mAh/cell
  • Ni-Cd/Ni-MH battery cell count: 1-15 cells
  • Lithium battery cell count: 1-6 series
  • Pb battery voltage: 2V-20V
Special features:
  • Optimised operating software:
    When charging or discharging, charger has an "Auto" function that sets the feeding current automatically. Especially for Lithium batteries, it can prevent over-charging which would lead to an explosion. Every program in the unit is controlled with mutual links and communication for every possible error so it introduces a maximum safety. These can be set at your option.
  • Individual voltage balancer for Lithium batteries inside:
    Charger has an individual-cell-voltage balancer inside.So it does not need any balancer additional when charging Lithium batteries(LiIo/LiPo/LiFe) for cell voltage balancing.
    Balance individual cells on discharge:
    Charger can also monitor and balance individual cells of the Lithium battery pack during the discharge process.If the voltage of any one cell varies abnormally, the process will stopped with the error message.
  • Deals with various of Lithium batteries:
    Charger deals with three types of Lithium batteries - Lilo, LiPo and LiFe. They have different characteristics according to their different chemistry. You can select any one of them that you are going to process before the job.
  • Lithium battery "Fast" and "Storage" mode:
    You can charge Lithium battery for special pruposes. "Fast" charge reduces the charging time of Lithium battery and "Storage"mode controls the final voltage of the battery to suit for ling time storage.
  • Maximum safety:
    Delta-peak sensitivity: The automatic charge termination program works on the principle of the Delta-peak voltage detection.(NiCd/NiMH)
    Auto-charge current limit: When charging NiCd or NiMH at "AUTO" current mode, you can set the upper limit of charge current to avoid from high current charging. This is very useful when charging the low impedance and small capacity NiMH battery in "AUTO" mode.
    Capacity limit: The charging capacity always calculated by multiple of the charging current and time. If the charging capacity exceeds the limit the process will be terminated automatically when the maximum value has been set.
    Temperature limit(*)The temperature of the battery in charging will rise.If you set limit on temperature the process will be expired forcibly when temperature has reached the limit.
    Processing time limit: You can also restrain the maximum process time to prevent any possible defect.
    Input power monitor: To protect the car battery using a DC input power from being damaged the voltage of it always monitored. If it drops below the lower limit the process will be ended automatically.
  • Data store/load: For users' convenience it can store maximum five data of different batteries. You can establish the data contains program setting of the battery to charge or discharge continually. These data can be called out at any time you need and the process can be executed without program setting.
  • Cyclic charging/discharging: Perform 1 to 5 cycles of charge>discharge or discharge>charge continaully for battery refreshing and balancing.
  • PC based analysis using USB communication(**): For technical expert, charger offers PC based program can analyse the characteristic of the battery. It shows a graph of voltage, current, capacity and temperature curve. It also shows the individual voltage of each cell in the Lithium battery pack.

    **ʞX㸠e㸬HʚѴ purchased program kit


Glow starter charging:
